- Mark-9 Installations -

Sun-n-Fun Display and 3 Aircraft

The EPI Mark-9 Gearbox was an integral part of the EngineAir-V8 powerplant The following pictures show the Mark-9 on the EngineAir-V8 powerplant, and a few of the aircraft on which it was installed and has been flying.

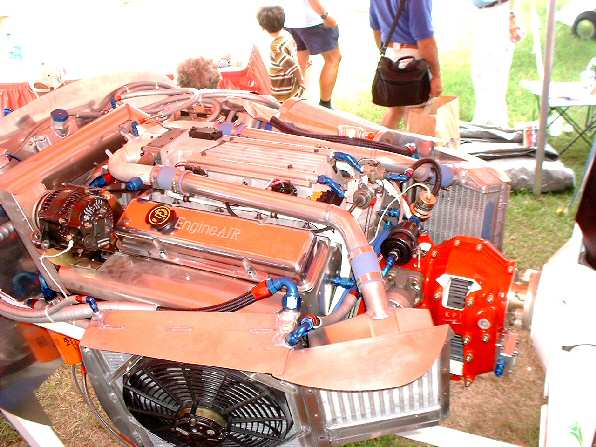

EA V8 w/ M9

Sun-n-Fun Display: EngineAir-V8 with EPI Mark-9 Gearbox

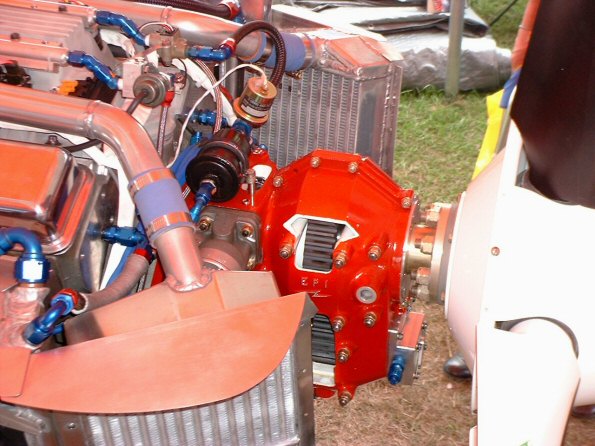

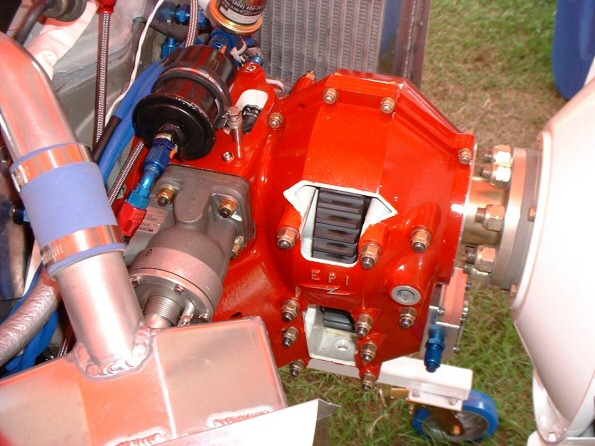

M9 SnF CloseUp

Closer Shot of Mark-9 on Sun-n-Fun Display

Tooth Contact

Close-up Showing Ideal Tooth-Contact Pattern

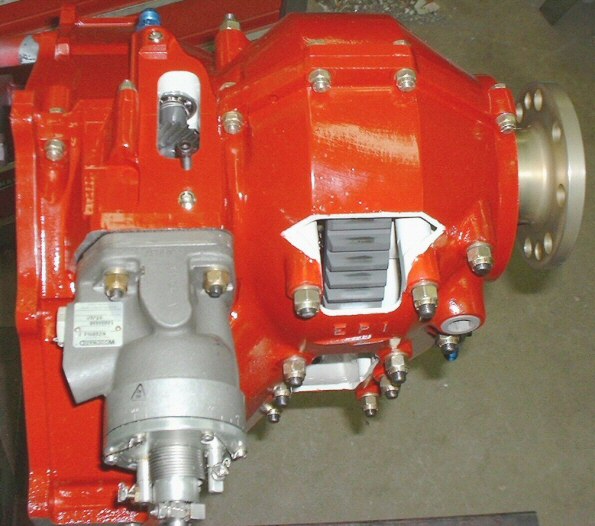

Starboard Side

Starboard Side View

Port Side

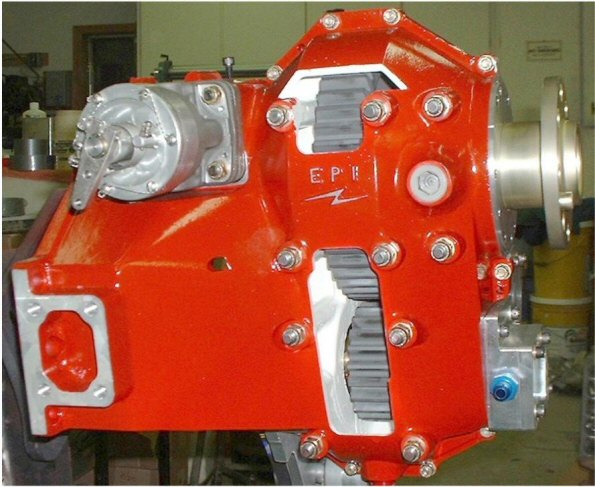

Port Side View Showing Idler Gear and Inspection Port

Top

Top View Showing Governor Drive Gears and Ideal Tooth Contact Pattern

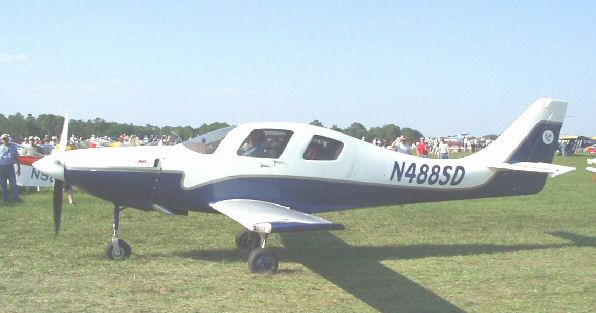

L4P w/M9

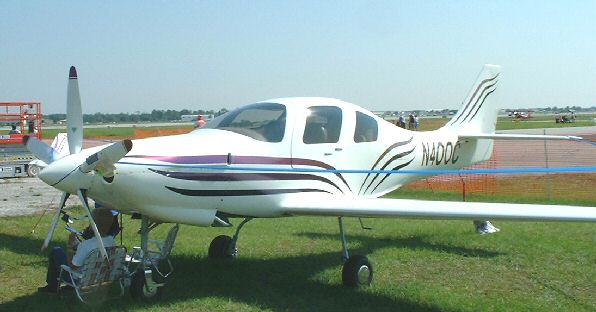

A Lancair-4P with the EngineAir-V8 and Mark-9 Gearbox

ANother L4P w/M9

Another Lancair-4P with the EngineAir-V8 and Mark-9 Gearbox

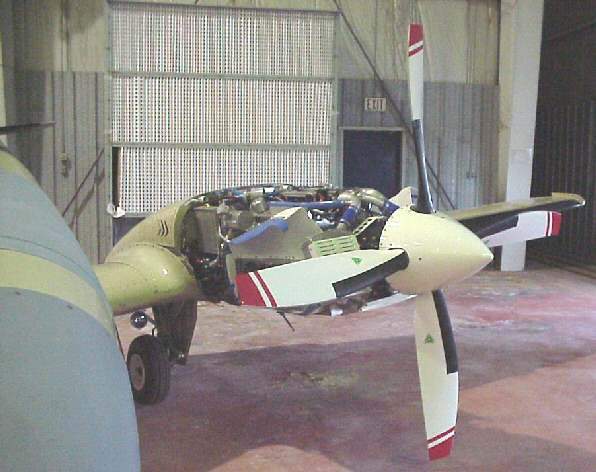

Duke w/M9

Beech Duke with EngineAir-V8 Engines and Mark-9 Gearboxes

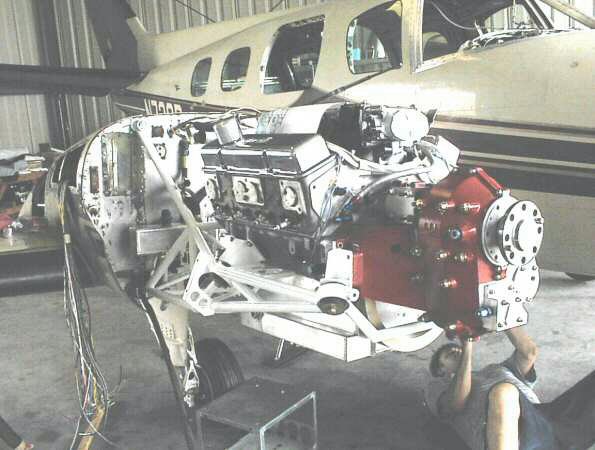

Duke 2

Beech Duke during Conversion Process

Duke 3

Beech Duke Port Engine View

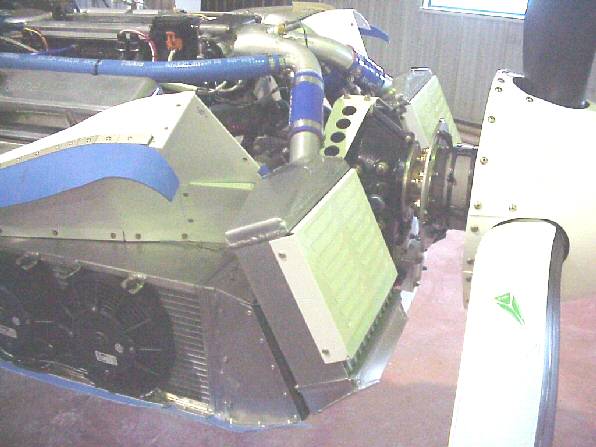

Duke 4

Beech Duke Port Engine Closer View
